STAINLESS STEEL POWDER GRINDING SYSTEM
This machine is mainly used in chemical industry, medicine (Chinese medicine), food, spices, resin powder, powder coating and other weak current substances and high temperature resistant materials. It is a new generation of continuous crushing equipment that integrates crushing and vacuuming.
Second: working principle and characteristics
This unit uses the relative movement between the movable tooth disc and the fixed tooth disc to make the material crushed by the impact of the tooth disc, the friction and the impact between the materials. The crushed materials are transported into the cyclone by the method of negative pressure air transportation, and the dust is filtered and recovered by the dust collection box through the cloth bag. The machine is designed according to the "GMP" standard, all made of stainless steel material, no dust flying in the production process, the machine has a continuous discharge effect, effective streamline operation, and can improve the utilization rate of materials and reduce the cost of enterprises. International advanced level.
This machine is a water-cooled cyclone dust crusher. When the equipment is running, the crushing knife in the machine cavity runs at a high speed to produce a cooling effect.
TECHNICAL PARAMETERS:
Model | GM-30B | GM-40B | GM-60B | GM-80B |
Production Capacity | 100-400 | 160-600 | 300-900 | 500-1500 |
Main Shaft Speed | 3800 | 3400 | 2800 | 2400 |
Inlet Particle Size | <12 | <12 | <12 | <12 |
Grinding Fine Size | 20-120 | 20-120 | 20-120 | 20-120 |
Grinder Motor | 7.5 | 11 | 22 | 37 |
Discharging Motor | 0.75 | 0.75 | 1.5 | 1.5 |
Dust Collecting Motor | 4 | 5.5 | 15 | 18.5 |
Outshape Size | 3500x850x2380 | 3700x900x2400 | 6500x1400x3280 | 7800x1750x3650 |

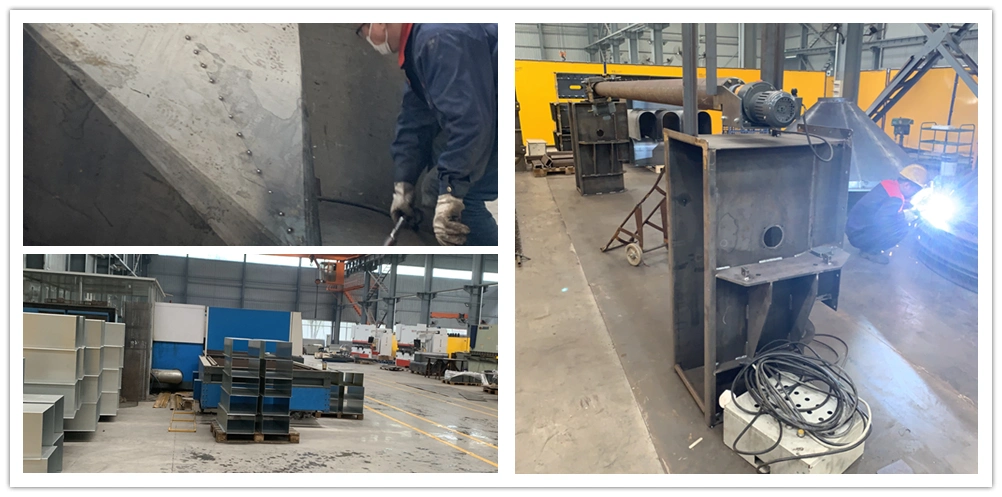

FACTORY AND MANUFACTURING :
